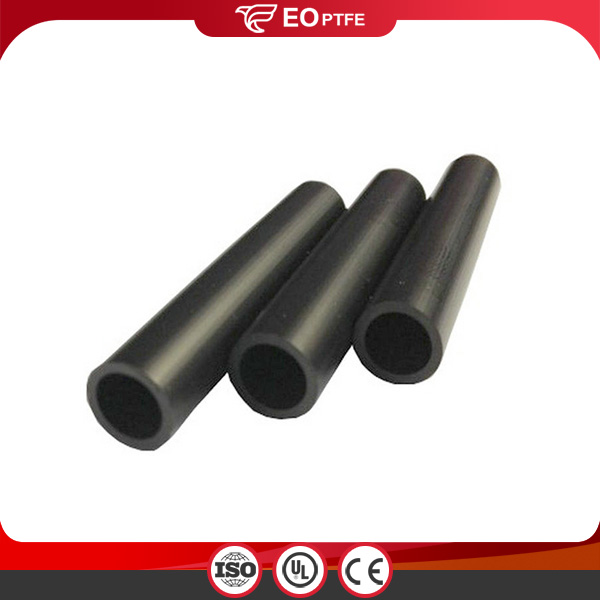

Filled with Carbon Graphite Black PTFE Rod

PTFE rod filled carbon graphite can achieve excellent wear resistance, high temperature resistance, high strength, high stiffness and dimensional stability while maintaining its low friction....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Extruded or mould
Certification	ISO9001, ISO14001, FDA, Rosh
Minimum Order Quantity	1kgs, specific size according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Package	Usually wooden case
Others	Can filled with other materials to enhance performance

PTFE rod is an unfilled PTFE resin suitable for processing a variety of gaskets, seals and lubricants that work in corrosive media, and electrical insulation parts used at various frequencies. Rods molded by molding, paste extrusion or plunger extrusion processes.

The temperature range is very wide (from -200 degrees Celsius to +260 degrees Celsius).

Basically resistant to all chemicals except some fluorides and alkaline liquids.

Excellent mechanical properties include aging resistance, especially for bending and oscillating applications.

Outstanding flame retardancy

Excellent insulation properties (regardless of frequency and temperature)

The water absorption rate is extremely low, and it has a series of unique properties such as self-lubricating and non-stickiness.

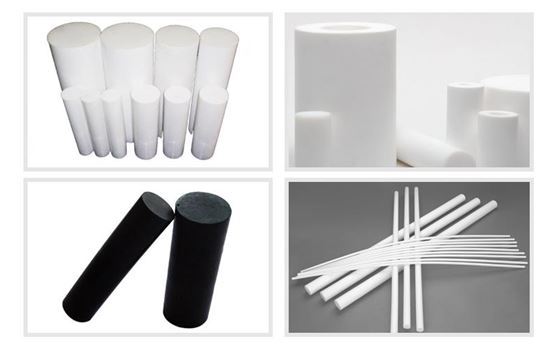

Product Show

Product Features

Main features of Filled with Carbon Graphite Black PTFE Rod:

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Even if PTFE rods have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.

Filled PTFE rods has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Specification

The General Specification of PTFE Rod

OD(mm)	Length(mm)	Length(mm)
1, 2, 3, 4	continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	1000	2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 1000	1000	2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	1000	2000
210, 220, 230, 240, 250, 260, 270, 280, 300	300
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	100

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Paste Extruded Rod	1~4	According to customer's request
Plug Extruded Rod	4~200	500~2000
Molded Rod	5~500	10~300

Item	Pure PTFE	20% Glass Fiber	60% Bronze	20% Carbon Fiber	15% Glass Fiber 5% graphite	Unit
Density	2.18	2.26	3.9	2.01	2.22	g/m3
Tensile strength	276	175	127	189	158	MPa
Elongation at break	238	207	101	92	205	%
ROCKWELL Hardness	3.2	6.4	33.8	32.1	11.3	-
Friction coefficient	0.13	0.20-0.24	0.18-0.2	0.16-0.18	0.15-0.17	-
Bending strength	207	210	280	320	225	°C

Details of PTFE filled with other materials :

Filled materials	Common filled ratio ( Quantity %)	Main performances
Bronze	40, 60	Increases hardness and wear resistance; Increases dimensional stability and compressive strength;
Carbon	5, 10, 15	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance;Improves electrical properties.
Graphite	5, 10, 15	Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity
Glass Fiber	10, 15, 25	Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability.
Carbon Fiber	10 , 15, 25	Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow
POB (polyphenyl ester)	5, 10, 15	Improve the lubrication performance;Enhance the mechanical strength; Increase using temperature
BaSO4	5, 10, 15	Increases compressive strength, hardness and wear resistance Reduces creep
SiO2	5, 10, 15	Increases hardness and wear resistance; Improve Dimensional Stability.
Glass beads	5, 10, 15	Reduces creep and cold flow;Lower density Increases hardness and wear resistance;
Others materials	PEEK(polyetheretherketone), PI(Polyimide), MoS₂ are also ok
Remarks	Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

Application

PTFE filled modified products: In order to improve the creep properties and wear resistance of PTFE, the PTFE is filled and modified. The main materials are graphite, carbon black, molybdenum disulfide, glass fiber, carbon fiber, polyphenylene sulfide etc.

Teflon is the heaviest of the plastics. It has a wide range of operating temperatures (-250~260°C), good chemical stability, excellent dielectric properties, self-lubricity and anti-stick properties, so it has a wide range of applications

It can be used as an anti-corrosion material in chemical industry to manufacture various anti-corrosion parts such as pipes, valves, pumps and fittings. Chemical equipment, lining and coating of reactors, distillation towers and anti-corrosion equipment.

Mechanically, it can be used as self-lubricating bearings, piston rings, oil seals and seals. Self-lubricating reduces wear and heat and reduces power consumption.

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.
