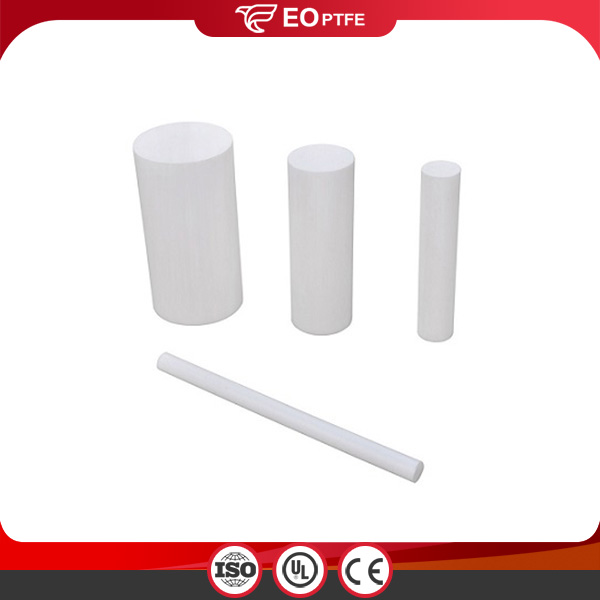

Filled with Glass Fiber Bronze PTFE Rods

In order to improve the creep properties and wear resistance of PTFE, PTFE rods are filled with PTFE by using graphite, glass fiber and the like as main materials. Main uses: gaskets, valve seats, seals, bearings, sliders, piston rings, etc....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Extruded or mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance

Specification

The General Specification of PTFE Rod

OD(mm)	Length(mm)	Length(mm)
1, 2, 3, 4	continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	1000	2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	1000	2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	1000	2000
210, 220, 230, 240, 250, 260, 270, 280, 300	300
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	100

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Paste Extruded Rod	1~4	According to customer's request
Plug Extruded Rod	4~200	500~2000
Molded Rod	5~500	10~300

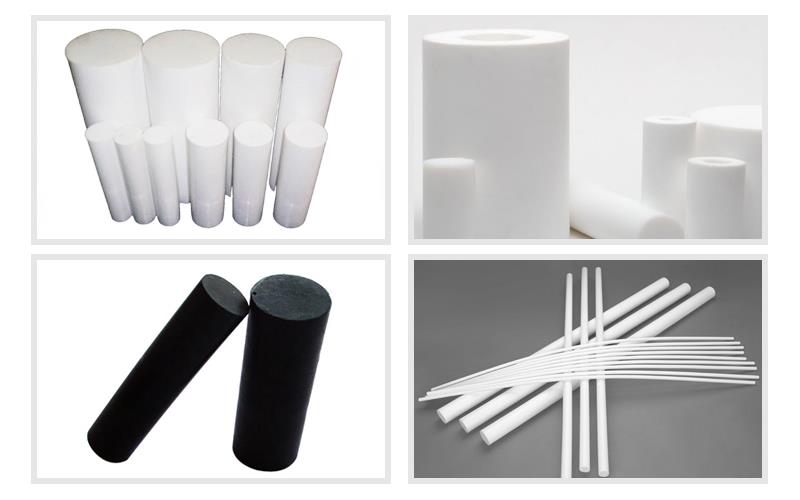

Product Show

Main features of pure PTFE rod :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Even if PTFE products have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.

Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Details of PTFE filled with other materials :

Filled materials	Common filled ratio ( Quantity %)	Main performances
Bronze	40, 60	Increases hardness and wear resistance; Increases dimensional stability and compressive strength;
Carbon	5, 10, 15	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance;Improves electrical properties.
Graphite	5, 10, 15	Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity
Glass Fiber	10, 15, 25	Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability.
Carbon Fiber	10 , 15, 25	Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow
POB (polyphenyl ester)	5, 10, 15	Improve the lubrication performance;Enhance the mechanical strength; Increase using temperature
BaSO4	5, 10, 15	Increases compressive strength, hardness and wear resistance Reduces creep
SiO2	5, 10, 15	Increases hardness and wear resistance; Improve Dimensional Stability.
Glass beads	5, 10, 15	Reduces creep and cold flow;Lower density Increases hardness and wear resistance;
Others materials	PEEK(polyetheretherketone), PI(Polyimide), MoS₂ are also ok
Remarks	Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

Item	Pure PTFE	60% Bronze	20% Glass Fiber	15% Glass Fiber 5% graphite	20% Carbon fiber	Unit
Density	2.18	3.9	2.26	2.22	2.01	g/m3
Tensile strength	276	127	175	158	189	MPa
Elongation at break	238	101	207	205	92	%
ROCKWELL Hardness	3.2	33.8	6.4	11.3	32.1	-
Friction coefficient	0.13	0.18-0.2	0.20-0.24	0.15-0.17	0.16-0.18	-
Bending strength	207	280	210	225	320	°C
