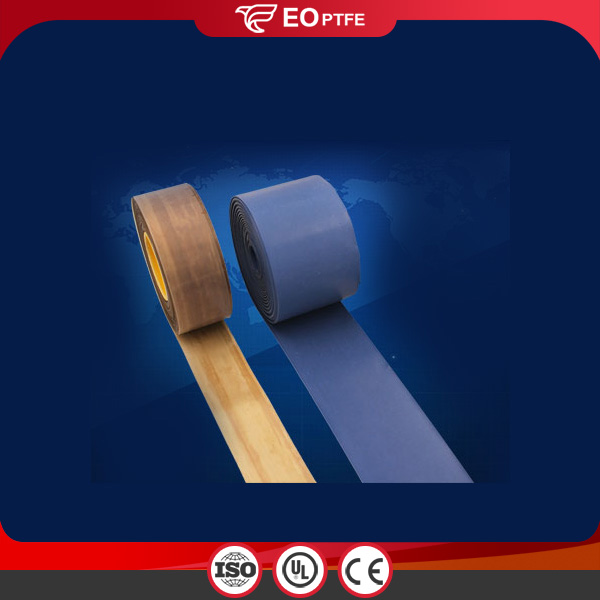

One Sides Sodium Etched PTFE Film

PTFE Film has made extensive investments in the latest skiving technologies, enabling us to provide customers with high quality, competitively priced products. For its excellent dielectric capability, anti-aging and anti-corrosion property, super thin PTFE teflon skived Tape&Film has been used in a wide range of industries including the electronics and semi density industries....

Send Inquiry

PTFE is an amazing non-stick material, but what about when you need to glue it to the suface of another material ? In order to bond standard PTFE to another surface such as stainless steel, a process called "etching" is required. Typical applications would include the lining of chemical process tanks or other equipment used in caustic environments. When bonding is needed, sodium ammonia etching is usually the most economical answer. This process uses of a mixture of sodium and ammonia that is formulated to create a bondable surface both quickly and efficiently.

From microchips to full size rolls, any shape or complexity, including tape, sheet, tubing, molded shapes & machined parts of any configuration can be etched & bonded. This treatment can be accomplished on one or more surfaces, or selectively within close tolerances.

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Skiving and mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	According to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance
Manufacturer	Wuxi Xiangjian PTFE Products Co.,ltd in Jiangsu China

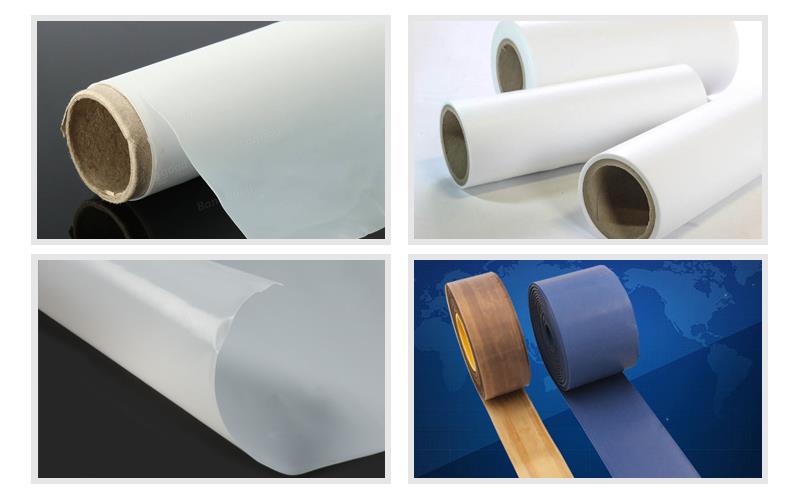

The PTFE film is made by suspending polytetrafluoroethylene resin by molding, sintering, cooling into a blank, and then turning and rolling.

Product Features

Main features of PTFE sheet :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

Main Properties of PTFE Film

Property	Unit	High-density	Common
Tensile strength	MPa	≥30	≥10
Elongation at rupture	%	≥30	≥100
1MHz dielectric loss tangent		2.5×10-4	--
1MHz dielectric constant		average 1.8-2.2	--
Dc breakdown voltage (Normal temperature)	KV/M	average 200	average 30
Dc breakdown voltage (Normal temperature)	KV/M	lowest 40	average 30

Specification

Specification of PTFE Film (can be customized)

Item	Thickness(mm)	Thickness Tolerance	Width(mm)	Item	Thickness(mm)	Thickness Tolerance	Width(mm)
High-density	0.015	0~+0.01	10-120	Common	0.03	0~+10%	30-1500
	0.02				0.05
	0.03				0.08
	0.04				0.10
	0.05				0.15
	0.07				0.20
	0.08				0.25
	0.90				0.30
	0.10				0.40
	0.15				0.50
