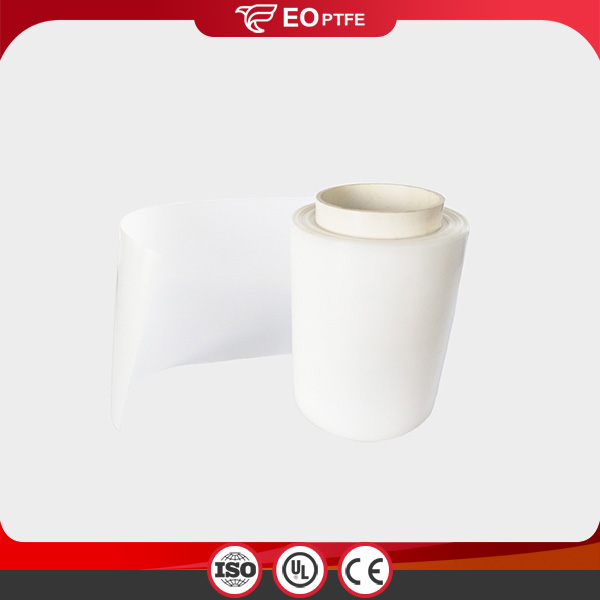

PTFE Membrane used in the gasket seals and lubrication material of all kinds of working medium , and electrical insulation used under all kinds of frequency, the capacitor dielectric, wire insulation, and electrical meter insulation....
Send InquiryPTFE Membrane used in the gasket seals and lubrication material of all kinds of working medium , and electrical insulation used under all kinds of frequency, the capacitor dielectric, wire insulation, and electrical meter insulation.

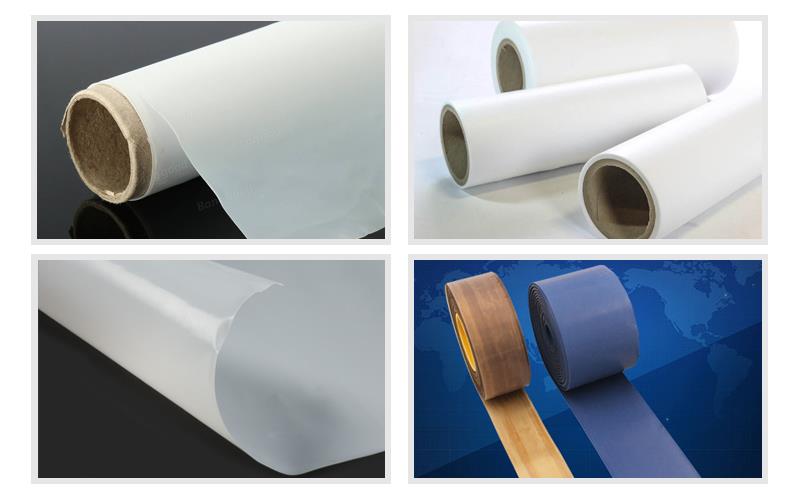

Furthermore, it is classified into oriented film, semi-oriented film and non-oriented film. Super thin PTFE teflon skived Tape&Film is available in a wide range of widths, thickness and colors. Especially, Senrong’s new investment in a high precision film skiving machine will make the production of ultra thin film or sheet possible, and can consistently achieve the tightest tolerance of ±.05 mils so that we can meet these exacting demands from customers worldwide.
Item | Thickness(mm) | Thickness allowance | Width(mm) | Width allowance |
High-density | 0.015,0.030 | ±10% | 5-100 | ±0.3 |
Semi-density | 0.030,0.035 | ±10% | 5-1000 | ±0.3 |
Common | 0.020,0.025 | ±10% | 5-1000 | ±2.0 |
Basic Info
| Material: PTFE |
| Kind: Hard Plastic Sheet |
| Water Absorption: 0.1%~0.3% |
| Contraction Percentage: 0.4%~1.4% |
| Tensile Strength:（30~40）MPa |
| Color: White |
| Size: Thick0.025mm-0.1mm |
| Temperature:-180～+ 260 ℃ |
Each roll individually wrapped and then packaged in cartons or meet your needs.
Please send us your requirement by email.
