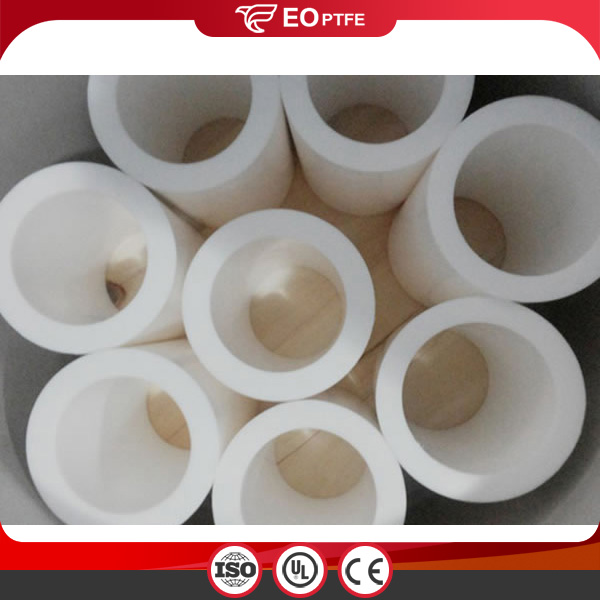

Virgin Materials Plastic PTFE Tubes

Virgin Materials Plastic PTFE Tubes are divided into three categories according to their processing technology: tubes with a diameter of 4mm-9mm are made by dispersing polymerized PTFE resin by paste pressing; tubes with a diameter of 10mm-50mm are selected as suspension PTFE. The resin is made by extrusion; the tube with a diameter of 50mm-300mm is made by molding....

Send Inquiry

Product Description

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Skiving and mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance

The PTFE tubes are divided into three categories according to their processing technology: tubes with a diameter of 4mm-9mm are made by dispersing polymerized PTFE resin by paste pressing; tubes with a diameter of 10mm-50mm are selected as suspension PTFE. The resin is made by extrusion; the tube with a diameter of 50mm-300mm is made by molding.

PTFE is a polymer of tetrafluoroethylene. The relative molecular mass of PTFE is relatively large, hundreds of thousands of low, more than 10 million high, and generally millions. Typical crystallinity is 90%-95%, melting temperature is 327-342°C

Its frictional properties are extremely small, only 1/5 of polyethylene, which is an important feature of the surface of perfluorocarbon.

Polytetrafluoroethylene has low dielectric constant and dielectric loss over a wide frequency range, and high breakdown voltage, volume resistivity and arc resistance.

Compared with other plastics, PTFE has excellent chemical resistance and temperature resistance. It is widely used as sealing material and filling material. It has high chemical stability and excellent chemical resistance, such as strong acid resistance, strong alkali, strong oxidant, etc. It has outstanding heat resistance, cold resistance, abrasion resistance, excellent electrical insulation and is not affected by temperature.

Specification

Specification of PTFE tube

	OD(mm)	Wall Thickness(mm)	Length(mm)
Paste Extruded Tube	0.5~25	0.1~2.5	According to customer's request
Plug Extruded Tube	25~250	1.5~8	According to customer's request
Molded Tube	25~2000	5~500	100~300

Product Features

Main features of PTFE sheet :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

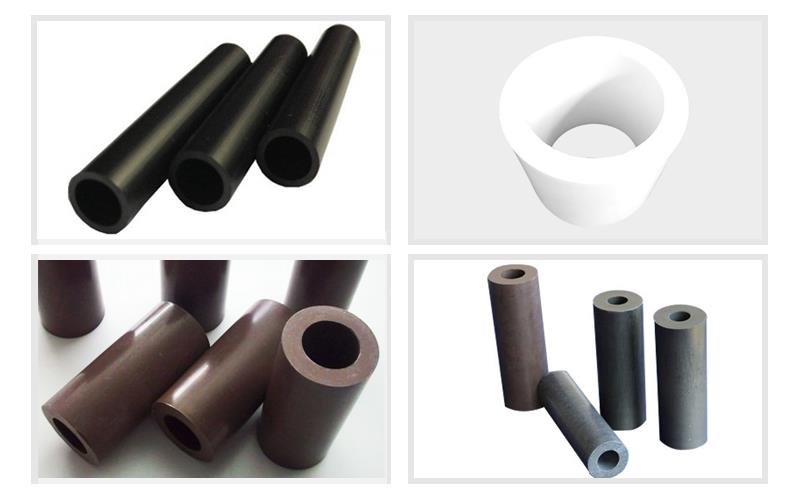

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Technical datas of pure PTFE tube

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95
