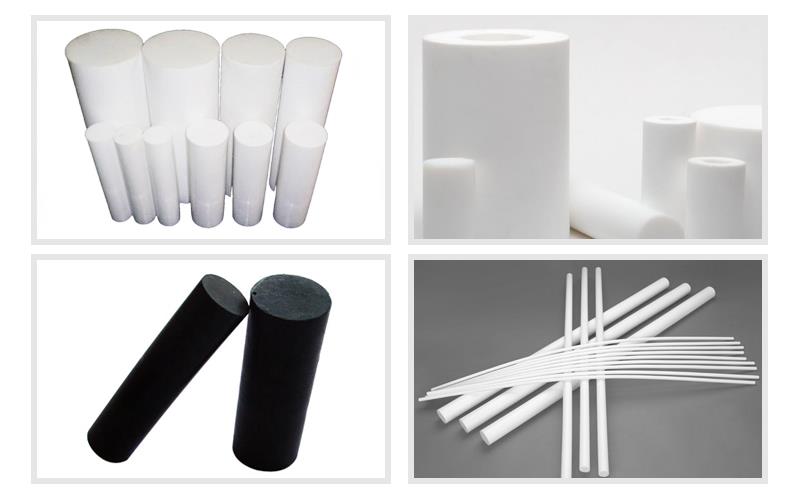

Recycled Materials Plastic PTFE Bar

Plastic PTFE Bar have a wide temperature range and are basically resistant to all chemicals. Excellent mechanical properties include aging resistance, especially for bending and oscillating applications, outstanding flame retardancy, excellent insulation. Characteristics, water absorption is extremely low, and a series of unique properties such as self-lubricating and non-stick properties....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Extruded or mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	USD7-11/kgs according to the specification and quantity, the more the cheaper.

Package	Usually wooden case
Others	Can filled with other materials to enhance performance
Manufacturer	Wuxi Xiangjian PTFE Products Co.,ltd in Jiangsu China

Product Description

PTFE is one of the best materials for corrosion resistance in the world. It can be used in any kind of chemical medium for a long time. Its production solves many problems in China, such as petroleum, chemical, pharmaceutical, etc. High chemical stability and excellent chemical resistance, such as strong acid resistance, strong alkali, strong oxidant, etc., outstanding heat resistance, cold resistance and wear resistance, long-term use temperature range of -200-+250 ° C, also Excellent electrical insulation and independent of temperature and frequency. In addition, it has the characteristics of no stain, no water absorption, no burning. The suspension resin is generally formed by molding and sintering, and the obtained rods, plates or other profiles can be further processed by machining methods such as planing, drilling and milling. The bar can be made into an oriented film by turning and drawing.

Specification

The General Specification of PTFE Rod

OD(mm)	Length(mm)	Length(mm)
1, 2, 3, 4	continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	1000	2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	1000	2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	1000	2000
210, 220, 230, 240, 250, 260, 270, 280, 300	300
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	100

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Paste Extruded Rod	1~4	According to customer's request
Plug Extruded Rod	4~200	500~2000
Molded Rod	5~500	10~300

Product Features

Main features of PTFE rod:

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Properties of pure PFFE Rod

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95
