Chemical Resistance PTFE Membrane

The PTFE film is molded, sintered, cooled into a blank by a suspension PTFE resin, and then subjected to turning and calendering. The turned film is a non-oriented film, and the non-oriented film is calendered to form an oriented film. PTFE film is used in capacitor dielectrics for wire insulation, electrical instrument insulation, and gaskets. PTFE film is divided into PTFE color film, polytetrafluoroethylene activated film and F46 (FEP) film....

Send Inquiry

Product Description

Chemical resistance ptfe membrane is first molded into work-blank and then skived. It is highly dielectric. Chemical resistant and not aging.

They have a wide range of operation temperature
Uses: Lining, seaing and oil less lubricating material and dielectric at any frequencies. Capacitor dielectric,wire isolation, electrical instrument isolation

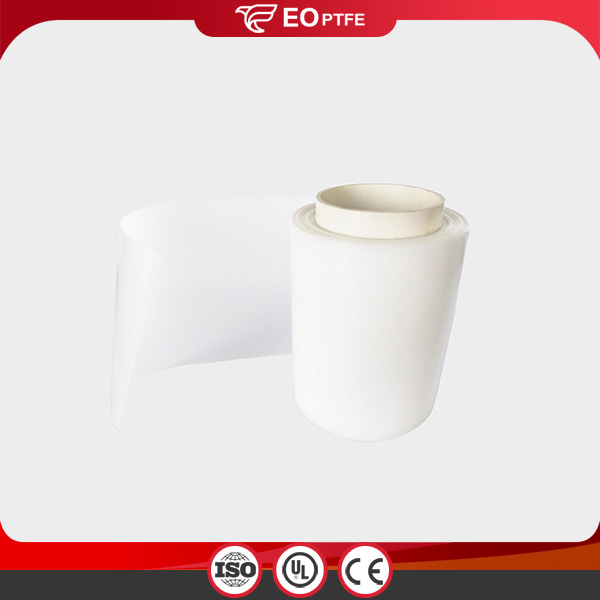

Chemical resistance ptfe membrane
.jpg

Items	Unit	Directional	Half directional	Non directional
Tensile strength	Mpa	≥30	≥20	≥10
Elongation	%	≥30	≥60	≥100
DC breakdown voltage	Kv/m	average value	average value 60	average value 30
		200	lowest value 60
		lowest value 40

Product Specification

Item	Thickness(mm)	Thickness allowance	Width(mm)	Width allowance
High-density	0.015,0.030 0.020,0.035 0.025,0.040	±10%	5-100	±0.3
Semi-density	0.030,0.035 0.05-0.10	±10%	5-1000	±0.3
Common	0.020,0.025 0.030,0.035 0.040-0.15	±10%	5-1000	±2.0
