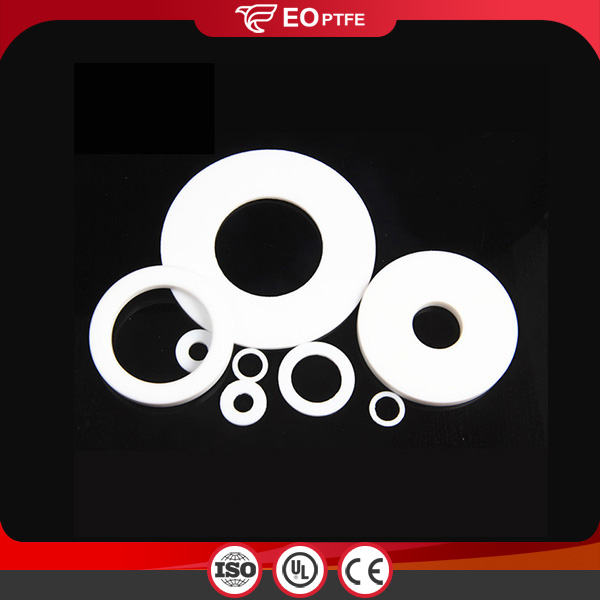

Virgin Materials Plastic PTFE Gaskets

Virgin Materials Plastic PTFE gaskets are used as sealing materials. Because of its high corrosion resistance, stable physical properties, high temperature resistance, it has achieved good sealing performance and has wide applications in petroleum, chemical, pharmaceutical, electric power and steel industries. Suitable media include almost all chemical components such as water, oil, acid solution, and alkali solution....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Skiving and mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	USD7-11/kgs according to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance

Specification

Standard Gasket

ENSI (PN2.0) mm					EU Standard(PN1.6)					JIS (16K)					JIS(10K)
Nomi- nal Dia	OD	ID	T	N.W.	Nomi- nal Dia	OD	ID	T	N.W.	Nomi- nal Dia	OD	ID	T	N.W.	Nomi- nal Dia	OD	ID	T	N.W.
DN15	46.5	22	3	0.01	DN10	46	18	3	0.01	DN10	53	18	3	0.014	DN10	53	18	3	0.014
DN20	56	27	3	0.015	DN15	51	22	3	0.012	DN15	58	22	3	0.016	DN15	58	22	3	0.016
DN25	65.5	34	3	0.02	DN20	61	27	3	0.016	DN20	63	28	3	0.017	DN20	63	28	3	0.017
DN32	75	43	3	0.023	DN25	71	34	3	0.021	DN25	74	35	3	0.023	DN25	74	35	3	0.023
DN40	84.5	49	3	0.03	DN32	82	43	3	0.027	DN32	84	43	3	0.028	DN32	84	43	3	0.028
DN50	104.5	61	3	0.05	DN40	92	49	3	0.033	DN40	89	49	3	0.03	DN40	89	49	3	0.03
DN65	123.5	77	3	0.053	DN50	107	61	3	0.042	DN50	104	61	3	0.038	DN50	104	61	3	0.038
DN80	136.5	89	3	0.06	DN65	127	77	3	0.055	DN65	124	77	3	0.051	DN65	124	77	3	0.051
DN100	174.5	115	3	0.13	DN80	142	89	3	0.066	DN80	140	90	3	0.062	DN80	134	90	3	0.053
DN125	196	140	3	0.14	DN100	162	115	3	0.07	DN90	150	102	3	0.066	DN90	144	102	3	0.056
DN150	221.5	169	3	0.15	DN125	192	141	3	0.092	DN100	165	115	3	0.076	DN100	159	115	3	0.065
DN200	278.5	220	3	0.18	DN150	218	169	3	0.105	DN125	203	141	3	0.116	DN125	190	141	3	0.088
DN250	338	273	3	0.25	DN200	273	220	3	0.145	DN150	238	167	3	0.156	DN150	220	167	3	0.111
DN300	408	324	3	0.35	DN250	329	273	3	0.182	DN200	283	218	3	0.176	DN175	245	192	3	0.125
DN350	449	356	3	0.45	DN300	384	325	3	0.226	DN250	356	270	3	0.291	DN200	270	218	3	0.137
DN400	513	407	3	0.55	DN350	444	377	3	0.3	DN300	406	321	3	0.34	DN225	290	244	3	0.133
DN450	548	458	3	0.5	DN400	495	426	3	0.343	DN350	450	359	3	0.4	DN250	333	270	3	0.205
DN500	605	508	3	0.6	DN450	555	480	3	0.419	DN400	510	410	3	0.5	DN300	378	321	3	0.215
DN550	659	559	3	0.7	DN500	617	530	3	0.539	DN450	575	460	3	0.643	DN350	423	359	3	0.27
DN600	716.5	610	3	0.8	DN600	734	630	3	0.766	DN500	630	513	3	0.722	DN400	486	410	3	0.368
										DN550	684	564	3	0.809	DN450	541	460	3	0.438
										DN600	734	615	3	0.867	DN500	596	513	3	0.497
															DN550	650	564	3	0.564
															DN600	700	615	3	0.604

Custom specifications

Diamater	≤3000mm
Thickness	0.1-10mm

Product Features

Main features of PTFE gasket :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

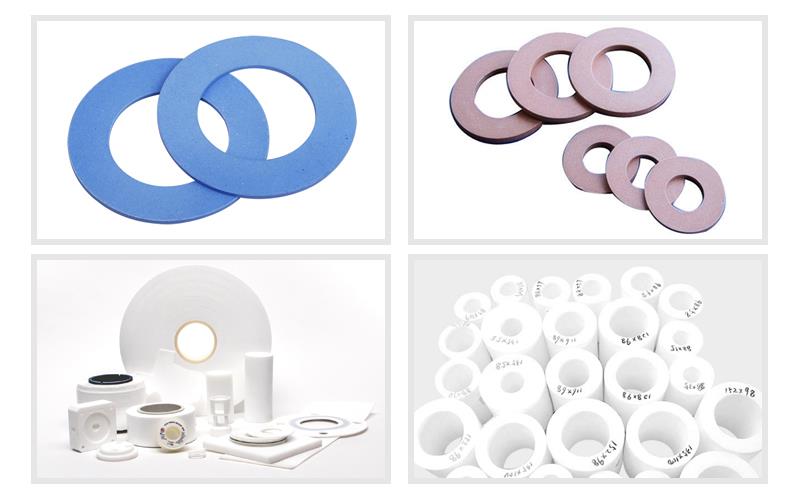

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Technical Indexes of pure PTFE gasket

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥15 about 18~ 45	MPa
Elongation at break	D638	≥150 about 180~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95
