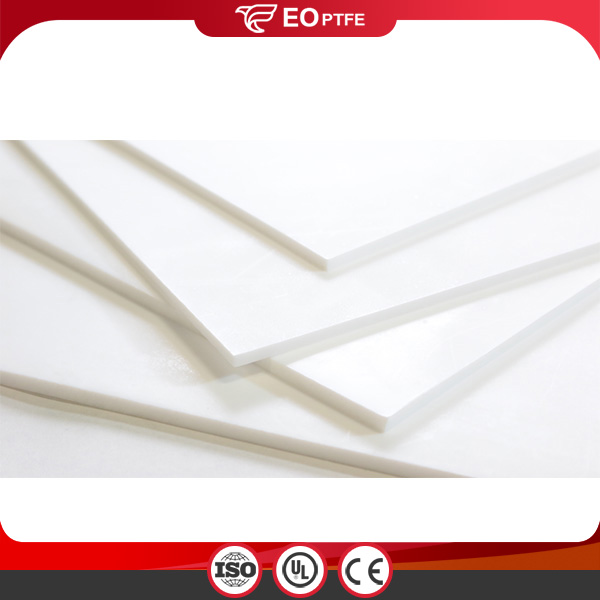

Molded PTFE Plates

Molded PTFE plate (also known as four fluorine plate, Teflon plate, Teflon plate) divided into two molding and turning, molded plate is PTFE resin at room temperature by molding method, and then sintering, cooling and made.Its products are widely used, with excellent comprehensive performance: high and low temperature, corrosion-resistant, weather resistance, high insulation, high lubrication, Non-stick, non-toxic and other excellent characteristics....

Send Inquiry

Product Description

Molded PTFE Board (also known as four fluorine plate, Teflon plate, Teflon plate) divided into two molding and turning, molded plate is PTFE resin at room temperature by molding method, and then sintering, cooling and made. The PTFE turning plate is made of PTFE resin by pressing billet, sintering and rotary cutting. Its products are widely used, with excellent comprehensive performance: high and low temperature ( -192℃-260℃), corrosion-resistant (strong acid, strong alkali, aqua regia, etc.), weather resistance, high insulation, high lubrication, Non-stick, non-toxic and other excellent characteristics.


Advantage:

High temperature-use operating temperature up to 250 ℃.

Low temperature resistance-good mechanical toughness, even if the temperature drops to 196 ℃, can also maintain 5% elongation.

Corrosion resistance-for most chemicals and solvents, it shows inertia, strong strong acid strong alkali, water and various organic solvents.

Weather resistant-The best aging life in plastics.

High lubrication-is the lowest friction coefficient in solid materials. Non-adhesion--is the smallest surface tension in the solid material, does not adhere to any material, mechanical properties of its friction coefficient is very small, only 1/5 of polyethylene, which is an important feature of fluorocarbon surface.

And because the fluorine-carbon chain intermolecular force is very low, so PTFE is not viscous. No toxicity-physiological inertia, as artificial blood vessels and organs for long-term implantation of the body without adverse reactions.

Product Specification

length*width	Thickness mm	Nominal Tolerance
150*150 mm	0.3-100 mm	±0.3~±0.5
250*250 mm	0.3-100 mm	±0.3~±0.5
300*300 mm	0.3-100 mm	±0.3~±0.5
500*500 mm	0.3-100 mm	±0.3~±0.5
600*600 mm	0.3-100 mm	±0.3~±0.5
700*700 mm	0.3-100 mm	±0.3~±0.5
800*800 mm	0.3-100 mm	±0.3~±0.5
1000*1000mm	0.3-100 mm	±0.3~±0.5
1200*1200mm	0.3-100 mm	±0.3~±0.5
1500*1500mm	0.3-100 mm	±0.3~±0.5
2000mm*2000mm	0.3-100 mm	±0.3~±0.5
We can customize the product according to the customer's requirement.
