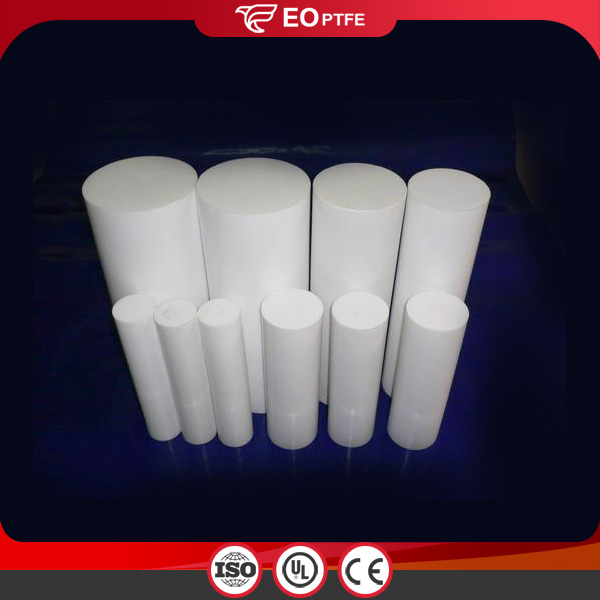

Moulded PTFE Bar

The PTFE molded bar is a bar made of a suspension resin which is formed by a molding method and then sintered at a high temperature. It is mainly used for some long products and non-standard mechanical parts: seals/gaskets, rings, wear plates/seats, insulation parts, corrosion resistance industry, mechanical parts, linings, oil and gas, petrochemical Industry, chemical industry, equipment and so on....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance

PTFE bars are available in push bars and molded bars. In known plastics, PTFE has the best chemical and dielectric properties and can be used at temperatures from -180 ° C to +260 ° C. And with the lowest coefficient of friction, mainly for some long products and non-standard mechanical parts: seals / gaskets, rings, wear plates / seats, insulation parts, corrosion resistance industry, mechanical parts, lining, Oil and gas, petrochemical industry, chemical industry, equipment manufacturers, etc.

Specification

The General Specification of PTFE Rod

OD(mm)	Length(mm)
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	100

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Molded Rod	5~500	10~300

Product Features

Main features of PTFE rod:

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Properties of pure PFFE Rod

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95

In the PTFE compression molding, the sintered blank is placed in a mold preheated to a sintering temperature, a hot pressing method of cooling while being pressurized, an automatic compression molding method of bidirectional extrusion, and pressurization using a fluid, etc. Press molding method.

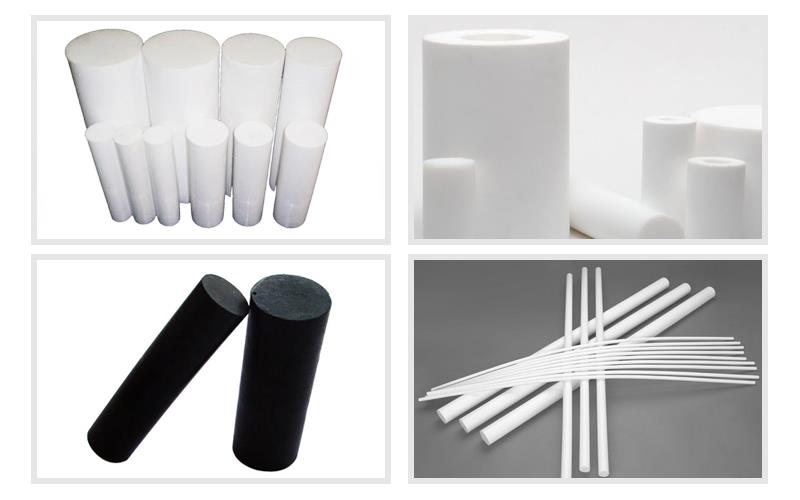

Product Show

Moulded PTFE bar .jpg
