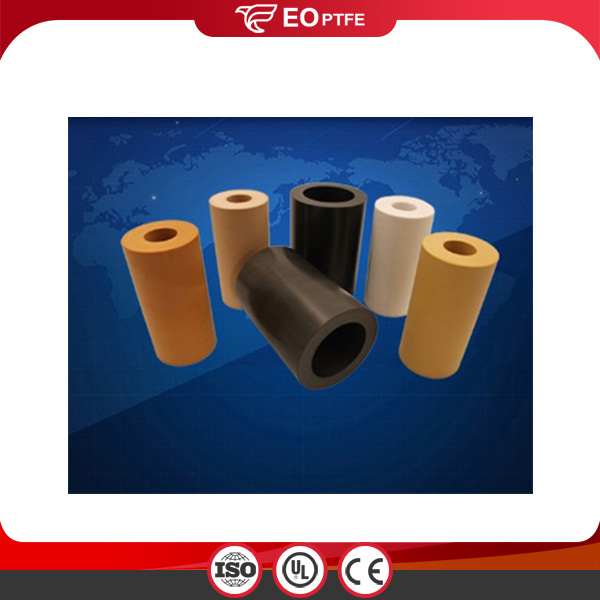

PTFE Filled with Enhance Hardness

PTFE Filled with Enhance Hardness have excellent heat resistance, chemical resistance, non-adhesiveness and weather resistance.According to different use requirements, an appropriate amount of filler can be added for modification. (Fillers are glass fiber, para-polyphenylene, molybdenum disulfide, polyphenyl ester, graphite, carbon powder, carbon fiber, bronze powder, silicon powder, etc.)...

Send Inquiry

Material	Virgin PTFE and filled with Bronze, BaSO4, SiO2 or other materials. Specified materials are also ok
Color	Please check the "color show" as following
Method	Skiving and mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	According to the size and our stock
Sample	Free
Price	According to the specification, quantity and materials the more the cheaper.
Price
Package	Usually wooden case

Organic fluoropolymers have excellent chemical resistance, weather resistance, non-stick properties and lubricating properties, and are increasingly used by people for heavy corrosion, high-grade decoration, anti-sticking and lubrication treatment. Among all organic fluoropolymers, PTFE has the best corrosion resistance and is the most widely used.

Specification

Specifications of PTFE skived Sheet

Regular specifications
Thickness(mm)	Width 1000mm	Width 1200mm	Width 1500mm	Width 2000mm	Width 2700mm
0.1, 0.2, 0.3, 0.4	√	√	√	—	—
0.5, 0.8	√	√	√	√	—
1, 1.5, 2, 2.5, 3, 4, 5, 6	√	√	√	√	√
7, 8	√	√	—	—	—
Custom specifications
Thickness	0.1mm ~ 10.0mm
Width	300 ~ 2700mm

Specifications of PTFE molded sheet

Regular specifications
Thickness(mm)	LengthWidth 10001000mm	LengthWidth 12001200mm	LengthWidth 15001500mm	LengthWidth 18001800mm	LengthWidth 20002000mm
2, 3	√	√	√	—	—
4 , 5, 6, 8, 10, 15, 20, 25, 30, 40, 50, 60, 70	√	√	√	√	√

80, 90 , 100	√	√	√	—	—
Custom specifications
Thickness	0.1mm ~ 10.0mm
Width	300 ~ 2700mm

√ The sizes range can be processed

Product Features

Main features of pure PTFE sheet :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Even if PTFE products have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.

Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Details of PTFE filled with other materials :

Filled materials	Common filled ratio ( Quantity %)	Main performances
Bronze	40, 60	Increases hardness and wear resistance; Increases dimensional stability and compressive strength;
Carbon	5, 10, 15	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance;Improves electrical properties.
Graphite	5, 10, 15	Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity
Glass Fiber	10, 15, 25	Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability.
Carbon Fiber	10 , 15, 25	Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow
POB (polyphenyl ester)	5, 10, 15	Improve the lubrication performance;Enhance the mechanical strength; Increase using temperature
BaSO4	5, 10, 15	Increases compressive strength, hardness and wear resistance Reduces creep
SiO2	5, 10, 15	Increases hardness and wear resistance; Improve Dimensional Stability.
Glass beads	5, 10, 15	Reduces creep and cold flow;Lower density Increases hardness and wear resistance;
Others materials	PEEK(polyetheretherketone), PI(Polyimide), MoS₂ are also ok
Remarks	Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

Item	Pure PTFE	60% Bronze	20% Glass Fiber	15% Glass Fiber 5% graphite	20% Carbon fiber	Unit
Density	2.18	3.9	2.26	2.22	2.01	g/m3
Tensile strength	276	127	175	158	189	MPa
Elongation at break	238	101	207	205	92	%
ROCKWELL Hardness	3.2	33.8	6.4	11.3	32.1	-
Friction coefficient	0.13	0.18-0.2	0.20-0.24	0.15-0.17	0.16-0.18	-
Bending strength	207	280	210	225	320	°C
